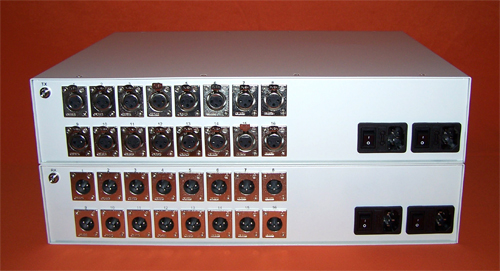

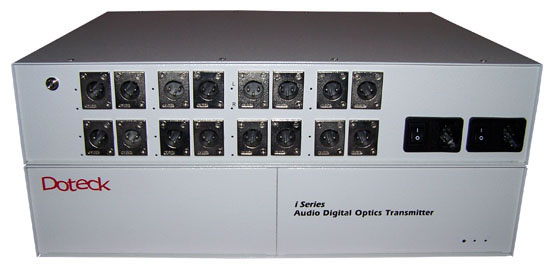

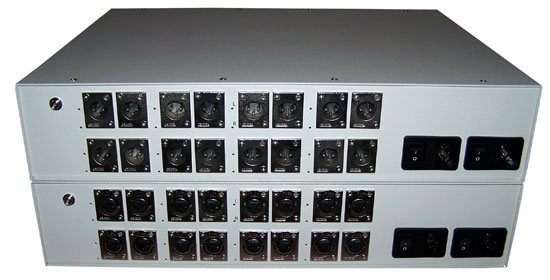

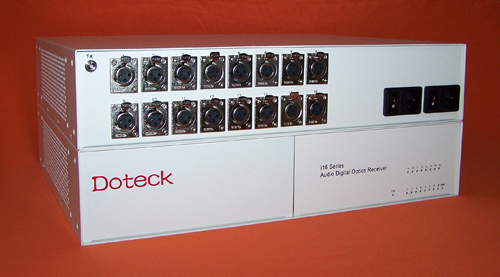

Doteck i16 Series 16-channel Analog Audio fiber optic Transmission System
Doteck

Doteck

Features
tAudio 20-bit encoder/decoder
tAudio input/output balance/unbalance transform automatically
tESD protection
tTransmission distance up to 100km
tAll components, including connectors, are ordered from  public-known manufacturers in the world, high stability and reliability ensurance
tEnclosure box material is made of aluminum, elegant appearance, light weight
tPCB boards made with environment friendly Pb-free and RoHS compliant
tConvenient instructions of LED status indicator, audio activity, optical link, power supply etc.

Introduction
tDoteck i16 series is a high performance broadcast quality 16-channel analog audio transmission system. The transmitter input 16-channel analog audio and the receiver output 16-channel analog audio.
tDoteck i16 series technical specifications are over broadcast quality, which is widely used in radio stations.
tDue to the advanced digital fiber optic transmission technology, almost you need not make any adjustments, simple to set up, easy to operate.

Technical Specifications

Analog audio input

Channel

 16
Signal resoltion 20Bit
Frequency response 20Hz-20KHz@-0.5dB
Operating mode

Balance, unbalance
Level 17.4Vp-p(+18dBm)

Channel insulation

>90dB@1KHz, >90dB@20KHz
Impedance 600Ω
Connector XLR

Analog audio output

Channel

 16
Signal resoltion 20Bit
Frequency response 20Hz-20KHz@-0.5dB
Operating mode

Balance, unbalance
Level 17.4Vp-p(+18dBm)
SNR(weighted) >90dB
THD <0.2%

Channel insulation

>90dB@1KHz, >90dB@20KHz
Delay 2 degree
Amplitude match ±0.2dB
Impedance

600Ω
Connector XLR

Physical

Dimension(H×W×D, mm)

 88×433×346(mm)

Dual power supply

130-260VAC, 50/60Hz

Power consumption

 <10W

Operation temperature

0-50℃

Relative humidity

0-95%, non-condensing

LED status indicator

Power, optical link, audio activity

Fiber optic link
Fiber type Single mode
Number of fiber 1
Wavelength

1310nm/1550nm

Distance

0-40km, or 0-80km, or 0-100km optional

Connector

 FC/PC, or SC/PC
