Doteck e2 Series

Datasheet

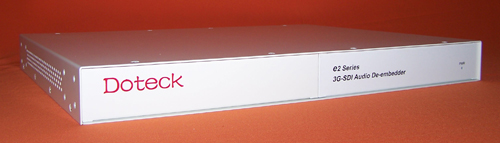

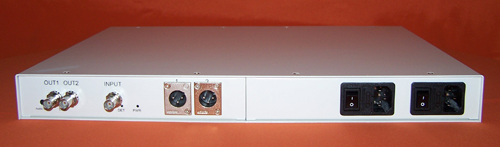

Doteck e2 Series 3G/HD/SDI HD Video Audio De-embedder

Doteck

Doteck

Doteck

Doteck

Features
t3G-SDI/HD-SDI/SDI signal auto recognition, need not select by hand
tSupport 2/4-channel analog audio or 2-channel AES/EBU digital audio de-embedded, or analog audio and AES/EBU combination, convenient and flexible
tCompliant with the standards of SMPTE424M, SMPTE292M, SMPTE259M, SMPTE297M, SMPTE305M, SMPTE310M
tAuto adaption to the speed of 3G-SDI/HD-SDI/SDI 143M, 177M, 270M, 360M, 540M, 1483.5M, 1485M, 2970Mbps
tWhen signal input, with automatic cable equalization function, and when signal output, with driver function
tWith re-clocking function when signal input and output
tPerfect LED indicators design, very convenient to monitor device work well or not
tPCB boards made with environment friendly Pb-free
tPCB boards made with multilayer design, to ensure stable and reliable signal conversion
tAll components, including connectors, are ordered from  public-known manufacturers in the world, high stability and reliability ensurance
tEnclosure box material is made of aluminum, elegant appearance, light weight
tSwitching power supply design, wide voltage range,  reliable long-term running
tMini box design, small and exquisite, convenient to setup and operate

Introduction
tDoteck e2 series HD video audio de-embedder de-embeds 2/4-channel analog audio or 2-channel AES/EBU digital audio from 3G/HD/SD-SDI digital video, output 2-channel 3G-SDI, or HD-SDI, or SDI with audio embedded.
tDoteck e2 series HD video audio de-embedder has high supreme signal precision, high supreme stability, high supreme reliability, which is a ideal HD video audio de-embedder for TV station, CMMB, IPTV, mobile TV, mobile phone TV, telecommunication operators, government video conference system and other new media field.

Technical Specifications

3G/HD/SDI input
Standard

SMPTE424M, SMPTE292M, SMPTE259M, SMPTE297M, SMPTE305M, SMPTE310M

Channel

1
Signal level >380mVp-p

Auto-cable
equalization

>100m@2970Mbps, (Belden 1694A cable)
>200m@1485Mbps, (Belden 1694A cable)
>350m@270Mbps, (Belden 1694A cable)

Return loss >10dB@2970Mbps
Impedance 75Ω
Connector BNC

Analog audio output

Channel

2 or 4
Frequency response 20Hz-20KHz@-0.5dB
Operating mode Balanced or unbalanced
Max input level

+18dBm

SNR(weighted)

>90dB

THD <0.2%
Isolation

>90dB@1KHz
>90dB@20KHz

Impedance

600Ω

Connector

XLR


AES/EBU digital audio output

Channel

2
Signal level 5Vp-p
Sampling frequency 48KHz
Jitter <0.005UI
Rise/fall time <25ns
Impedance

110Ω

Connector

XLR


3G/HD/SDI output

Channel

2

Signal level 800mVp-p±10%
3G-SDI Rise/Fall time <135ps@2970Mbps
HD-SDI Rise/Fall time <270ps@1485Mbps
SDI Rise/Fall time <0.6ns@270Mbps
3G-SDI Jitter <0.3UI
HD-SDI Jitter

<0.2UI(134ps)@100KHz
<1.0UI(673ps)@10Hz

SDI Jitter

<0.2UI(740ps)@10Hz
<0.2UI(740ps)@1KHz

Impedance 75Ω
Connector BNC

Physical

Dimension(H×W×D, mm)
2-channel mini box
4-channel mini box
19-inch 1RU


44×203.4×200(mm)
44×165×236(mm)
44×433×346(mm)

Power supply 130-260VAC, 50/60Hz

Operation temperature

0-50℃

Relative humidity

0-95%, non-condensing

LED status indicator

Power, video activity
