Doteck HD Series

Datasheet

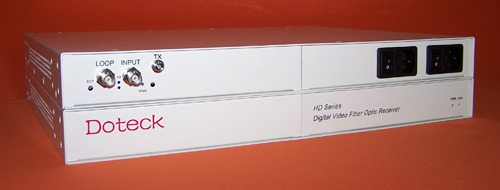

Doteck HD Series HD-SDI Digital Video fiber optic Transmission System

Doteck

Doteck

Features
tPathological test passed with UK HD video test and measurement manufacturer PHABRIX
tHD-SDI/SDI/ASI signal auto recognition, not need select by hand
tCompliant with the standards of SMPTE292M, SMPTE259M, SMPTE297M, SMPTE310M, SMPTE305M
tCompliant with the standard of DVB-ASI
tAuto adaption to the speed of HD/SD-SDI 143M, 177M, 270M, 360M, 540M, 1483.5M, 1485Mbps, or DVB-ASI
tWhen signal input, with automatic cable equalization function, and when signal output, with driver function
tWith re-clocking function at transmitter and receiver
tPerfect LED indicators design, very convenient to monitor transmitter and receiver work well or not
tPCB boards made with environment friendly Pb-free
tPCB boards made with multilayer design, to ensure stable and reliable signal transmission
tAll components, including connectors, are ordered from public-known manufacturers in the world, high stability and reliability ensurance
tEnclosure box material is made of aluminum, elegant appearance, and light weight
tDual switching power supply design, wide voltage range, reliable long-term running
tA variety of installation options: 18/8/4/2/1-slot rack chassis, particularly suitable for large volume optical transmission platform construction, fixed 19-inch 1RU box, small box and mini box

Introduction
tDoteck HD series digital video fiber optic transmission system can transmit one 1485Mbps HD-SDI high definition digital video, or one 270Mbps SDI standard definition digital video or one DVB-ASI stream through one single mode fiber or multimode fiber with the standards of SMPTE292M, SMPTE259M, SMPTE297M, SMPTE305M, SMPTE310M.

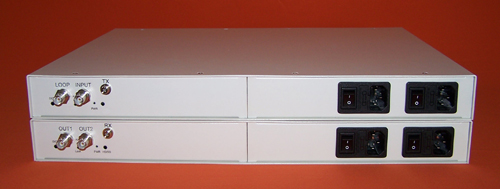

tDoteck HD series transmitter provides one HD/SD-SDI input, and one loop-through for local monitoring. The receiver output 2-channel parallel HD/SD-SDI digital video.
tDoteck HD series transmitter and receiver all have re-clocker chips to regenerate the signal.
tDoteck HD series transmitter equipped with auto-cable equalization circuit, and cable driver circuit available at receiver.
tDoteck HD series, both at the transmitter and receiver, signal jitter elimination circuit available, to ensure high quality signal transmission over long distance fiber cable.
tDoteck HD series uses 5V power supply system, low power consumption.

Technical Specifications

HD-SDI input
Signal standard

SMPTE292M, SMPTE259M, SMPTE297M, SMPTE305M, SMPTE310M, DVB-ASI

Channel

 1 plus 1 loop-through

Signal level

>380mVp-p

Auto-cable
equalization

>200m@1485Mbps, (Belden 1694A cable)
>350m@270Mbps, (Belden 1694A cable)

Input return loss

>10dB@1485Mbps

Impedance

75Ω

Connector

BNC

HD-SDI output
Channel 2
Signal level 800mVp-p±10%

HD-SDI Rise/Fall time

<270ps@1485Mbps

SDI Rise/Fall time

<0.6ns@270Mbps

HD-SDI Jitter

<0.2UI(134ps)@100KHz
<1.0UI(673ps)@10Hz

SDI Jitter

<0.2UI(740ps)@10Hz
<0.2UI(740ps)@1KHz

Impedance

75Ω

Connector

BNC

Physical

Dimension(H×W×D, mm)

44×433×346(mm)

Dual power supply

130-260VAC, 50/60Hz
Power consumption <10W

Operation temperature

0-50℃

Relative humidity

0-95%, non-condensing

LED status indicator

Power, optical link, video activity

Fiber optic link
Fiber type Single mode
Number of fiber 1
Wavelength 1310nm/1550nm

Distance

0-40km, or 0-80km, or 0-100km optional

Connector

FC/PC, or SC/PC
  More Installation Choice
Doteck
Doteck
       18 slots, front panel and rear panel, dual power supply
Doteck
       8 slots, dual power supply
Doteck
        4 slots, dual power supply
Doteck
        2 slots, dual power supply
Doteck
         One slot, built-in power supply
