Doteck HD Mini Series

Datasheet

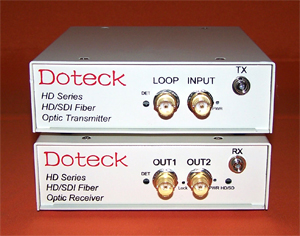

Doteck HD Mini Series HD-SDI Digital Video fiber optic Transmission System
Doteck

Doteck
Features
tPathological test passed with UK HD video test and measurement manufacturer PHABRIX
tHD-SDI/SDI/ASI signal auto recognition, not need select by hand
tCompliant with the standards of SMPTE292M, SMPTE259M, SMPTE297M, SMPTE310M, SMPTE305M
tCompliant with the standard of DVB-ASI
tAuto adaption to the speed of HD/SD-SDI 143M, 177M, 270M, 360M, 540M, 1483.5M, 1485Mbps, or DVB-ASI
tWhen signal input, with automatic cable equalization function, and when signal output, with driver function
tWith re-clocking function at transmitter and receiver
tPerfect LED indicators design, very convenient to monitor transmitter and receiver work well or not
tPCB boards made with environment friendly Pb-free
tPCB boards made with multilayer design, to ensure stable and reliable signal transmission
tAll components, including connectors, are ordered from public-known manufacturers in the world, high stability and reliability ensurance
tEnclosure box material is made of aluminum, elegant appearance, and light weight
tSingle switching power supply design, wide voltage range, reliable long-term running
tA variety of installation options: 18/8/4/2/1-slot rack chassis, particularly suitable for large volume optical transmission platform construction, fixed 19-inch 1RU box, small box and mini box

Introduction
tDoteck HD Mini series digital video fiber optic transmission system can transmit one 1485Mbps HD-SDI high definition digital video, or one 270Mbps SDI standard definition digital video or one DVB-ASI stream through one single mode fiber or multimode fiber with the standards of SMPTE292M, SMPTE259M, SMPTE297M, SMPTE305M, SMPTE310M.
tDoteck HD Mini series transmitter provides one HD/SD-SDI input, and one loop-through for local monitoring. The receiver output 2-channel parallel HD/SD-SDI digital video.
tDoteck HD Mini series transmitter and receiver all have re-clocker chips to regenerate the signal.
tDoteck HD Mini series transmitter equipped with auto-cable equalization circuit, and cable driver circuit available at receiver.
tDoteck HD Mini series, both at the transmitter and receiver, signal jitter elimination circuit available, to ensure high quality signal transmission over long distance fiber cable.
tDoteck HD Mini series uses 5V power supply system, low power consumption.

Technical Specifications

HD-SDI input

Signal standard

SMPTE292M, SMPTE259M, SMPTE297M, SMPTE305M, SMPTE310M, DVB-ASI

Channel

1 plus 1 loop-through
Signal level >380mVp-p

Auto-cable
equalization

>200m@1485Mbps, (Belden 1694A cable)
>350m@270Mbps, (Belden 1694A cable)
Input return loss

>10dB@1485Mbps
Impedance 75Ω
Connector BNC

HD-SDI output
Channel 2
Signal level 800mVp-p±10%
HD-SDI Rise/Fall time

<270ps@1485Mbps
SDI Rise/Fall time <0.6ns@270Mbps
HD-SDI Jitter

<0.2UI(134ps)@100KHz
<1.0UI(673ps)@10Hz
SDI Jitter

<0.2UI(740ps)@10Hz
<0.2UI(740ps)@1KHz
Impedance 75Ω
Connector BNC

Physical

Dimension(H×W×D, mm)

 44×146×169(mm)

Power supply

130-260VAC, 50/60Hz

Power consumption

 <10W

Operation temperature

0-50℃

Relative humidity

0-95%, non-condensing

LED status indicator

Power, optical link, video activity

Fiber optic link
Fiber type Single mode
Number of fiber 1
Wavelength 1310nm/1550nm
Distance 0-40km, or 0-80km, or 0-100km optional
Connector FC/PC, or SC/PC
  More Installation Choice
Doteck
Doteck
       18 slots, front panel and rear panel, dual power supply
Doteck
       8 slots, dual power supply
Doteck
        4 slots, dual power supply
Doteck
        2 slots, dual power supply
Doteck
         One slot, built-in power supply
