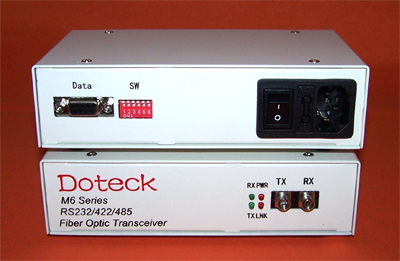

Doteck M6 Series RS232/422/485 Data fiber optic Transmission System
Doteck

Doteck

Features
tRS232 or RS422 or RS485 interface is optional
tThe power indicator light and transmitting and receiving indicator accurately indicate the working state
tThe component and connector selection of domestic and foreign well-known manufacturers of products, stable and reliable performance
tUse aluminum material shape design, compact appearance, light weight

Introduction
tDoteck M6 series RS232/422/485 data fiber optic transmission system can achieve 1-channel RS232 or RS422 or RS485 through long distance transmission multi-mode or single-mode optical fiber, with the advantages of anti- electromagnetic interface, anti-electric shock.

Technical Specifications

Data

Signal format

RS232/422/485

Data speed

0～115.2Kbps

Connector

DB﹣9, or terminal block

Working mode

Full duplex, or half duplex

Physical

Dimension(H×W×D, mm)
Internal power supply
External power supply


44×168.5×97.1(mm)
25.1×66.2×95.1(mm)
Power supply

130-260VAC, 50/60Hz, or 2A/5V

Power consumption

<5W

Operation temperature

0-50℃

Relative humidity

0-95%, non-condensing

LED status indicator

Power, optical link, data activity

Fiber optic link
Fiber type Single mode

Number of fiber

 2

Wavelength

1310nm/1550nm

Distance

0-20km, 0-40km optional

Connector

FC/PC
