Doteck RP1 Series

Datasheet

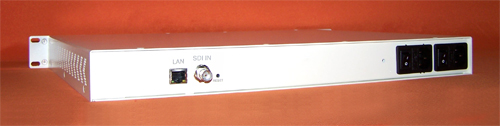

Doteck RP1 Series HD Video Stream Pushing Encoder
Doteck

Doteck

Features
tSupport one channel 3G/HD/SD-SDI signal input
tSupport PID follow function, with the original program PID consistent
tSupport TS description parameter setting, including Service ID, PMT PID, PCR PID, video PID, audio PID
tSupport UDP, RTSP, RTMP, HTTP, SRT agreements such as the output
tSupport for volume fixed gain or dynamic gain adjustment
tSupport for H.264, H.265 coding standard
tSupport MP2, MP3, AAC, AC3 audio coding standard
tSupport video code rate is adjustable from 32K-32Mbps
tSupport audio code rate 48K-256Kbps adjustable
tSupport full HD 1080p, 1080i, 720p, 576i
tSupport 25.0, 30.0, 50.0, 60.0 video encoding frame rate
tSupport CBR, VBR code rate control mode

Introduction
tDoteck RP1 series one channel HD direct broadcast push stream encoder adopts standard 1U case structure, it is a high quality broadcast audio real-time coding product, support H.264, H.265 and other video coding standards, support MP2, MP3, AAC, AC3 and other audio coding standards.

Technical Specifications

SDI input

Supported format

3G/HD/SD-SDI

Channel

1

Resolution

1080p50/50
1080i60/50
720p60/50
576i50, 480i60

Interface

BNC 75Ω

Video encoding

Video encoding format

H.264, H.265

Bit rate

32Kbps-32Mbps

Rate control

CBR, VBR

Audio encoding

Sample rate

32KHz, 44.1KHz, 48KHz

Bit rate

48Kbps-256Kbps

Audio encoding format

MP2, MP3, AAC, AC3

IP stream output

Output interface

RJ45

Rate

1000Mbps

Network protocol

UDP, RTSP, RTMP, HTTP, SRT

Physical

Dimension(H×W×D, mm)

44×433×346(mm)

Operation temperature

0-50℃

Relative humidity

0-95%, non-condensing

Power supply

130-260VAC, 50/60Hz
