USA BCI:: 1500F  Digital Fiber Optic 250C Short Haul Analog Video Transport System with SDV or HDTV Digital Video with Alarm/Monitoring

(BCI = Broadata Communications Inc.)



Features
tSimultaneously Transport 250C Short Haul Analog and SMPTE Digital Video
tCost Effective Solution for Simultaneous Analog and Digital Video Feeds
tReliable Transmission Over Multimode or Singlemode Fiber
t1 Fiber Solution

Applications
tRemote Studio to Transmitter Link
tBroadcast Analog/Digital Video Distribution
tPre-production and Post-production Mixed Analog/Digital Video Links

Introdution
tThe 1500F Series is a high performance, yet affordable, Fiber Optic 250C Short Haul Analog Video Transport System with SDV/HDTV Digital Video. The standard 1500F system is designed to transport one broadcast quality 250C analog video channel, four professional grade analog audio channels, and/or one RS-232 (or RS-422) channel, as well as one SMPTE-259M (SDV) or SMPTE-292M (HDTV) serial digital video signal, over long distance through either singlemode or multimode fiber. Many versions of optical transmitter and receiver combinations are available to address different distance requirements.
tMonitoring ports are available for analog video and audio channels. The video monitoring port utilizes a 75 Ohm BNC termination while the 4 audio monitoring ports utilize 3 position, 600 Ohm terminal block connections. Other monitoring functions include LED indicators for video loss, optical link loss, power loss, and audio channel activity.
tDue to the use of advanced digital fiber optic transmission technology, the quality of analog video, audio and data transmission is superior to the analog counterparts. No user adjustments are required in the 1500F system, enabling quick setup and trouble-free operation.

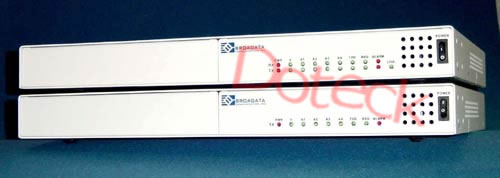

tThe 1500F comes in a rugged, standalone, rackmountable unit. Panel connectors are provided for analog baseband video (BNC connector), analog stereo audio (terminal block), RS-232/RS-422 data (DB9 connector), SDV/HDTV digital video (BNC connector), and fiber connection (FC-type for the singlemode version or ST-type for the multimode version). The 1500F can be easily monitored by front panel LED indicators for power, optical link, and channel activity.
tThe 1500F design is capable of addressing a variety of non-standard configurations. Contact us to discuss your custom, OEM/private brand and high volume requirements.

Specifications

Video

Channel Capacity 1 plus 1 monito
Signal Resolution 10/12 bits digitized
Video Standard 525/625 lines
Bandwidth 10MHz
Video Level 1.0Vp-p @ 75 Ohms
Differential Gain < 1.0%
Differential Phase < 0.7 Degree
SNR (Weighted) > 70dB
Connector BNC, 75 Ohm

Audio

Channel Capacity 4 plus 4 monitors
Operating Mode Balanced or Unbalanced
Signal Resolution 24Bits
Input/Output Impedance 600/600 Ohms(Balanced)
Max. Input/Output Level +18dBm @ 600 Ohms(Balanced)
Magnitude Freq. Response 20Hz?0KHz @ -1dB
SNR (Weighted) > 80dB @1KHz @+10dBm
Connector Terminal Block

Serial Data

Channel Capacity 1
Signal Format RS-232/RS-422
Operating Mode Full Duplex with Handshake
Data Rate Up to 128kbps (RS-232)
Up to 1 Mbps (RS-422)
Connector DB-9

SDV/HDTV Digital Video

Channel Capacity 1
Signal Format SMPTE-259M / SMPTE-292M
Data Rate 19.39Mbps / 270Mbps /1485Mbps
Signal Level 800mVp-p±10%
Input/Output Impedance 75 Ohms
Connector BNC

Optical

Fiber Type

Multimode and Singlemode

Number of Fibers 1
Wavelength 1310 and/or 1550 nm
Typical Output Level* -14 dBm (Multimode)
-4 dBm (Singlemode)
Typical RX Sensitivity* -18 dBm (Multimode)
-18 dBm (Singlemode)
Fiber Optic Connector ST (Multimode)
FC (Singlemode)

Physical

Dimension (H x W x D)
Standalone Unit

1.72" x 17.03" x 12.00"

Card-cage Plug-in Card 9.68" x 1.37" x 10.60"
Power Level 95 to 240 VAC @ 2.4 A
Operating Temperature 0 to +50?
Humidity 0 to 95% RH, non-condensing
Status Indicator Power, Optical Link,
Channel Activity
Front\Rear Panel Application
